Global TopSpecial Edition R/C Models No.223

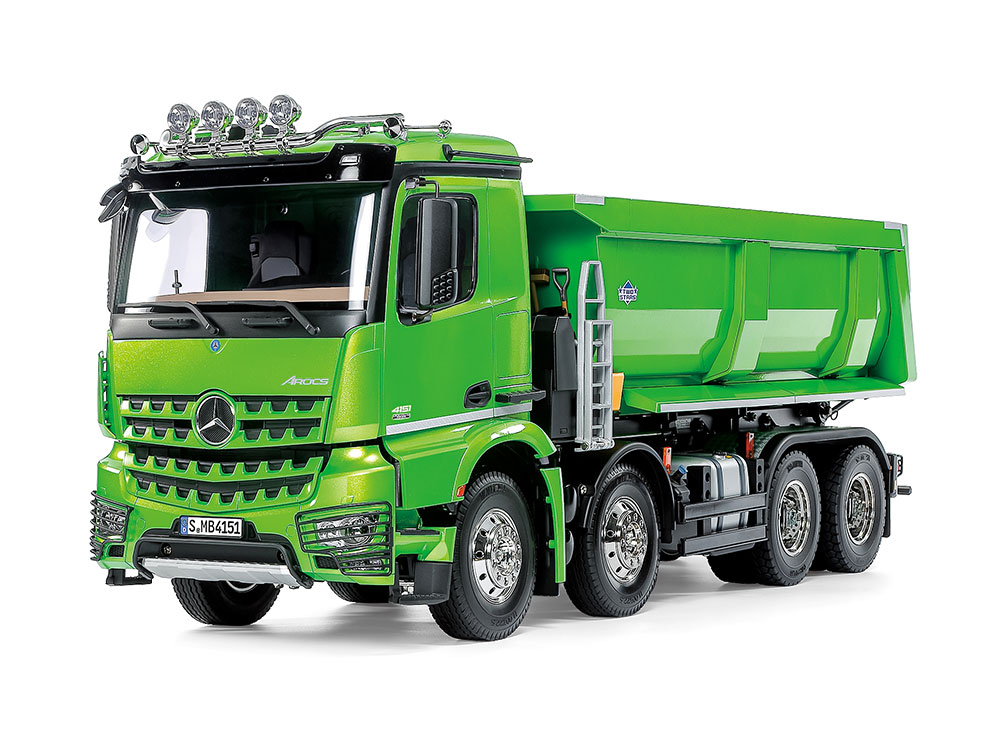

1/14 SCALE R/C MERCEDES-BENZ AROCS 4151 8x4 TIPPER TRUCK (CANDY GREEN EDITION)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_1.jpg" />
)
The Arocs series is a line of heavy-duty models introduced in 2013 by the world’s leading truck manufacturer, Daimler Truck AG (Germany). This R/C model assembly kit recreates the Arocs 4151 8x4 dump truck (gross vehicle weight: 41t), which runs on a 12.8-liter turbocharged inline-6 engine capable of 510hp. It features a highly detailed body and cab pre-painted in Candy Lime Green for your convenience, and given a lustrous urethane topcoat. Air tanks and other parts are pre-painted in semi-gloss black. The distinctive bucket tooth front grille is a separate part. The roof has a front bar with light pods, and the inside of the cab is also depicted. Behind the cab, the realistic one-piece plastic bed is reinforced with a metal frame, while the ladder frame chassis features aluminum side channels with resin cross members. The two front axles are steered via a single servo, and power from the front-mounted 35T motor is delivered to rear axles via propeller shaft, with a built-in differential gear on each rear axle for smooth cornering. Its highly-realistic suspension utilizes metal leaf springs and friction dampers. Tandem die-cast front axles have individual leaf springs, and reinforced resin rear axles are a trunnion design. The assembly type 3-speed transmission allows gear changes via a separately available 4-channel transmitter.
Specifications
★Length: 667mm, Width: 196mm, Height: 268mm, Weight (without optional parts): Approx. 5.1kg ★Wheelbase: 133mm + 215mm + 103mm ★Tread: 156mm (front), 138mm (rear, double tire) ★Chassis: aluminum & polycarbonate resin ladder frame ★Front/rear leaf spring rigid suspension ★Caster angle (front/rear): 0°/0° ★Camber angle (front/rear): 0° ★Toe angle: 0°(front & rear) ★Aluminum dummy dampers (front & rear) ★Dual rear axle drive ★3-gear transmission (gear shifting operated via transmitter) ★Gear ratio: (1st) 32.49:1, (2nd) 17.76:1, (3rd) 10.66:1 ★3-bevel differential gears ★TR Mighty Tuned Motor (35T) ★Tire width/diameter: 22mm/83mm (front); 22mm/84mm (rear)
Separately Required Items
★R/C system w/ESC (MFC-03 or TBLE-02S recommended) ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
Get Tipping!
This separately sold set features parts to enable control of Tamiya 1/14 R/C tipper truck beds via separately sold transmitter. It includes geared motor, spindle shaft, link pieces and ACU-01 unit, and can raise beds carrying loads of up to 10kg. A clutch is installed to help prevent damage due to over-loading.
Realistic Lights, Sounds, and Vibration
Tamiya Multi-Function Control Units (not included, sold separately) offer lights, sounds, and vibrations to accompany your R/C truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips. Please note that longer cables (separately sold Items 56549, 56550 and 56551) are required to light up taillights.
-

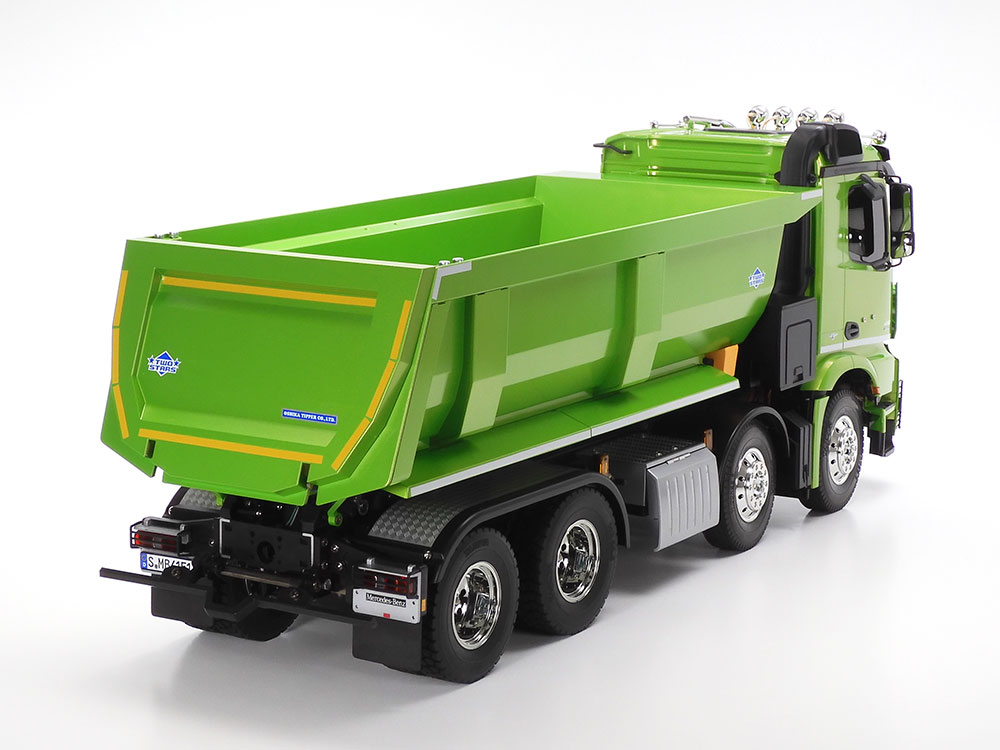

The model looks great in its bright green coloring.
-

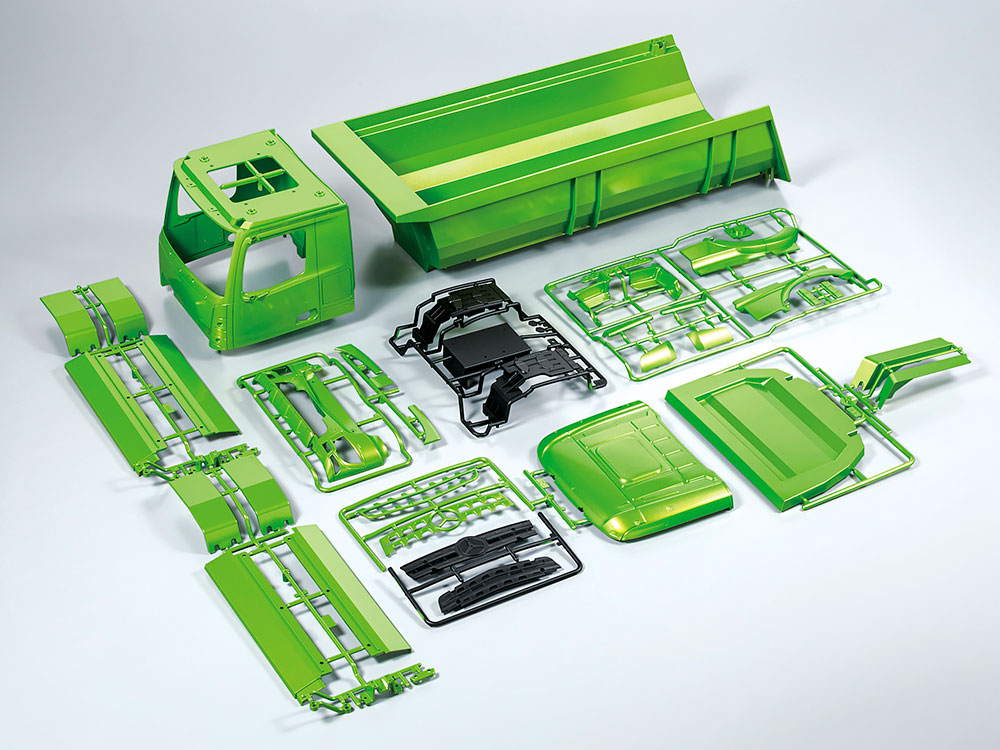

A look at all of the pre-painted parts in the set, which will save you time on the paint job.
-

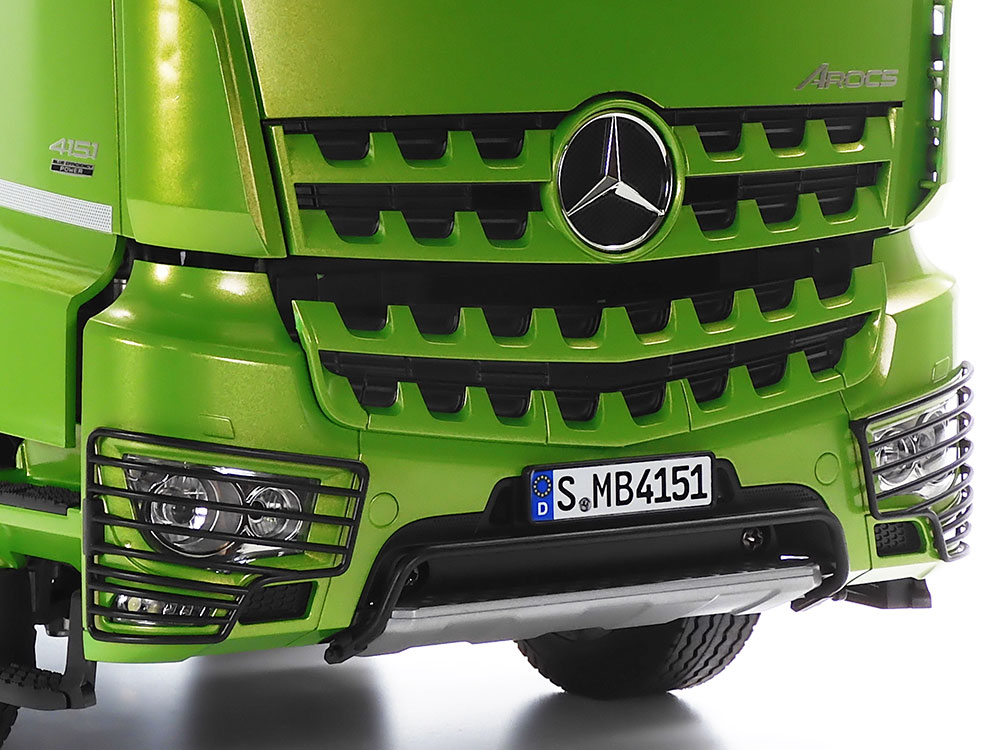

The distinctive front grille is a separately molded part, with a separate metal-plated three pointed star.
-

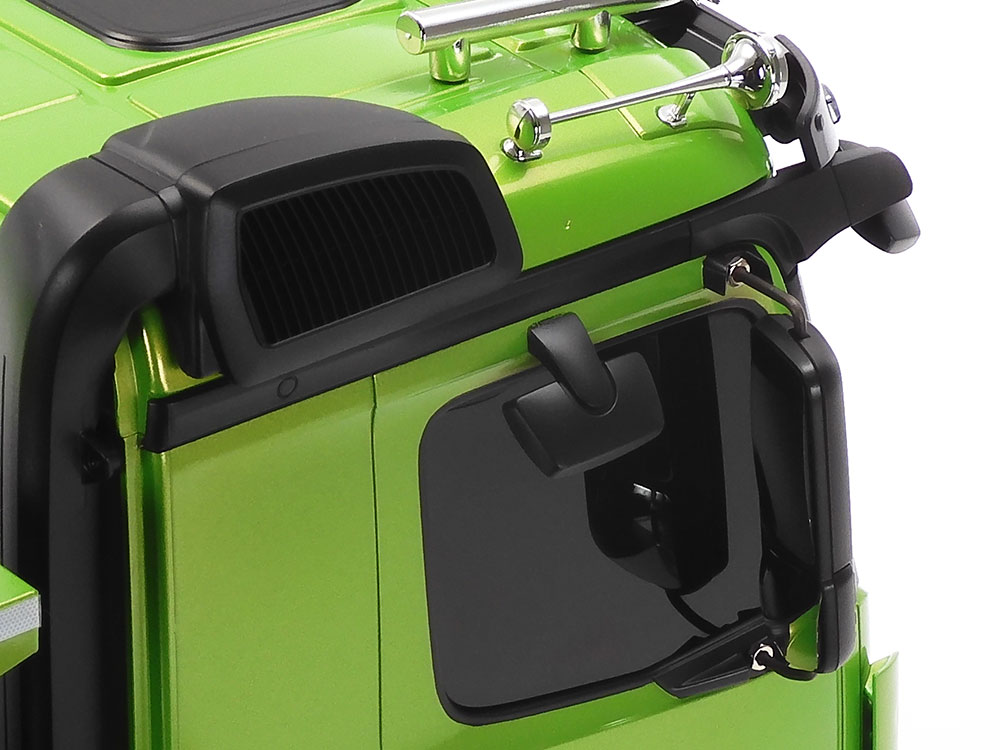

3D plated mirror surfaces and air duct add further realism.
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c1.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c2.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c3.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c4.jpg" />
)
-
The battery case is positioned above the second axle, letting you change the battery even if the model is loaded.
-
The ladder can be deployed or put away.
-
A single servo steers both front axles.
-
A 3-speed assembly type transmisson and TR Mighty-Tuned Motor (35T) are in the kit to ensure durable and realistic running.
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c5.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c6.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c7.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c8.jpg" />
)
-
The trunnion design suspension is inspired by full-size trucks, and features special reinforced plastic axles plus metal leaf springs.
-
The model features stylish metal-plated wheels both front and rear, the former having single tires, and the latter having dual tires.
-
A close-up on a rear fender, which covers both axles and features a flat top with anti-slip markings recreated by sticker.
-
Separately sold LEDs can be used to light up brake lights, turn signals and taillights.
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c9.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c10.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c11.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c12.jpg" />
)
-
The front end of the the bed can be adorned with the included shovel, brush and fire extinguisher for super realism.
-
Four cones are also included in the kit, and make a nice accessory when displaying the model stationary.
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c13.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c14.jpg" />
)
Get tipping with the separately sold Electric Actuator Set for 1/14 Scale Tipper Truck!
-
A precision geared motor turns the spindle shaft, lengthening and shortening the metal cylinder.
-
The model can run with and lift loads of up 10 kilograms, with bed motion controllable via transmitter.
-
The locks on the truck bed rear keep the gate closed when bed is down, and allow it to open as the bed is raised.
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c16.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c15.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c17.jpg" />
)
Realistic Lights, Sounds, and Vibration with the separately sold MFC-03 unit
-
Among the various boxes and tanks on the truck is the exhaust box, which can be used to house the MFC-03's control unit.
-
This model has a customized mood, with lamps installed on the roof bar. Why not light them up, too, with the MFC unit?
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c18.jpg" />
)
![](<img src="//d7z22c0gz59ng.cloudfront.net/cms/img/usr/item/4/47523/47523_4c19.jpg" />
)
Information is current as of November 5, 2025. Specifications are subject to change without notice.
