All Electric R/C Car Series No.516
1/10 SCALE R/C BMW 318i STW (TT-01 TYPE-E CHASSIS)

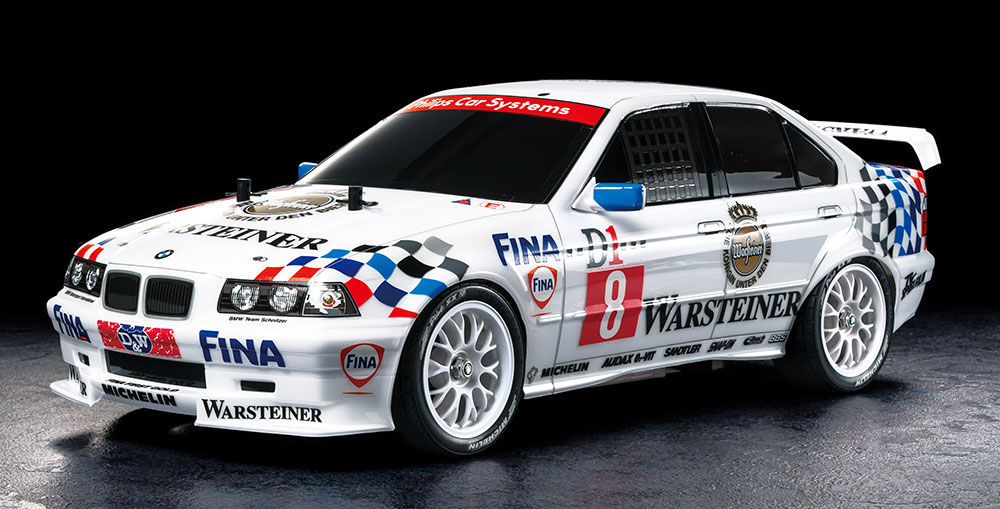

Length: 447 mm. Image shows painted and assembled kit.
BMWの商標はBMW AGの許可を得て使用しています。
This is a 1/10 scale R/C assembly kit of the BMW 318i STW race car which won the championship title during the 1995 Super Touren Wagen Cup (STW) season in Germany. The famous form of the race car has been faithfully reproduced by the polycarbonate body while side mirror and rear wing parts are separately molded for enhanced realism. Stickers are included to recreate both STW and JTCC champion cars.
TT-01 Type-E ChassisThe bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower center of gravity and optimum balance. Mounted on the bathtub frame is a fiberglass reinforced nylon upper deck and gear covers improving rigidity, as well as a three-piece tie rod providing smooth steering action. The low center of gravity, highly balanced design, 4-wheel double wishbone suspension system, and front and rear differential gears all come together to produce an excellent drive. Slick tires are mounted on white mesh wheels for the finishing touch, while a host of Hop-Up Option parts are available to soup up the TT-01 Type-E!
Specifications●Length: 447mm, width: 186mm, height: 137mm ●Wheelbase: 257mm ●Tire width/diameter (front and rear): 27/67mm ●Bathtub type frame chassis ●Longitudinally-mounted motor, shaft-driven 4WD ●Front & rear 3-bevel differentials ●3-piece steering tie-rod ●4-wheel double wishbone suspension ●Front & rear friction dampers ●Gear ratio=8.35:1 ●Type 540 motor ●ESC included for export.
Separately Required Items★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
Chassis
Information is current as of January 12, 2026. Specifications are subject to change without notice.
