Item No:58750

All Electric R/C Car Series No.750

1/10 SCALE R/C MERCEDES-AMG GT3 EVO (TT-02 CHASSIS)

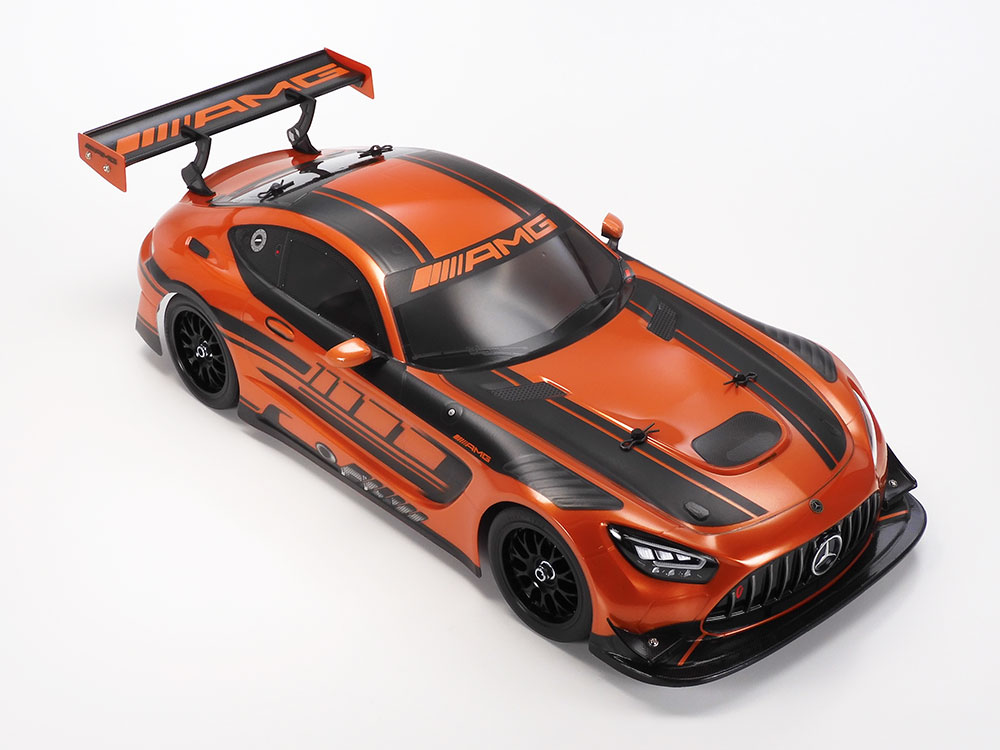

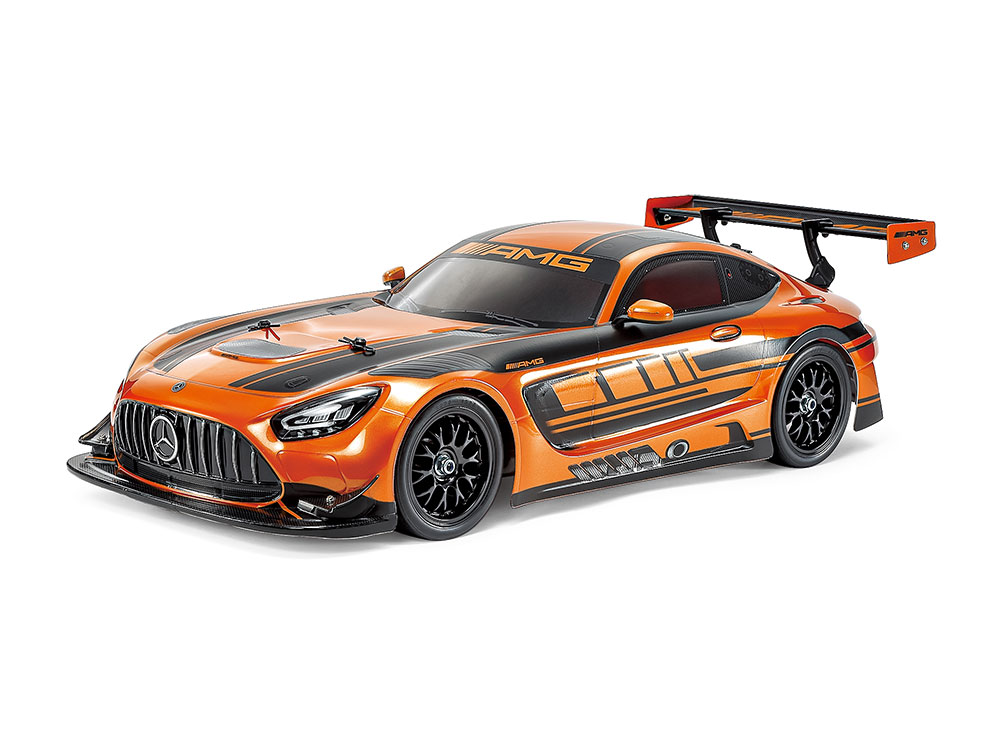

Length: 454mm. Image shows assembled and painted kit.

The Mercedes-AMG GT3 is one of the world's most popular Customer Racing cars. Equipped with innovative motorsport technologies such as the optional drop-start function or state-of-the-art aerodynamics, it delivers tremendous reliability and high-level performance. It is characterised by excellent drivability and pioneering safety standards. Powered by an AMG 6.3-liter naturally aspirated V8 engine, the Mercedes-AMG GT3 generates a maximum torque of 650 Nm and an output of 550 hp (404 kW). Now, it is recreated by this assembly kit radio control car model, with a detailed polycarbonate body and wing, plus stickers to decorate it. The 251mm short wheelbase version of the TT-02 chassis is paired with black type wheels and racing slick tires.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black mesh design wheels use semi-pneumatic slick tires.

Specifications
★Length: 454mm, width: 189mm, height: 120mm ★Wheelbase: 251mm ★Tire width/diameter: 26/66mm (front & rear) ★Bathtub-type frame ★Shaft-driven 4WD ★Front/rear 4-bevel plastic differentials ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Front/rear friction dampers ★Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ★Type 540 motor ★ESC included for export.

Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger

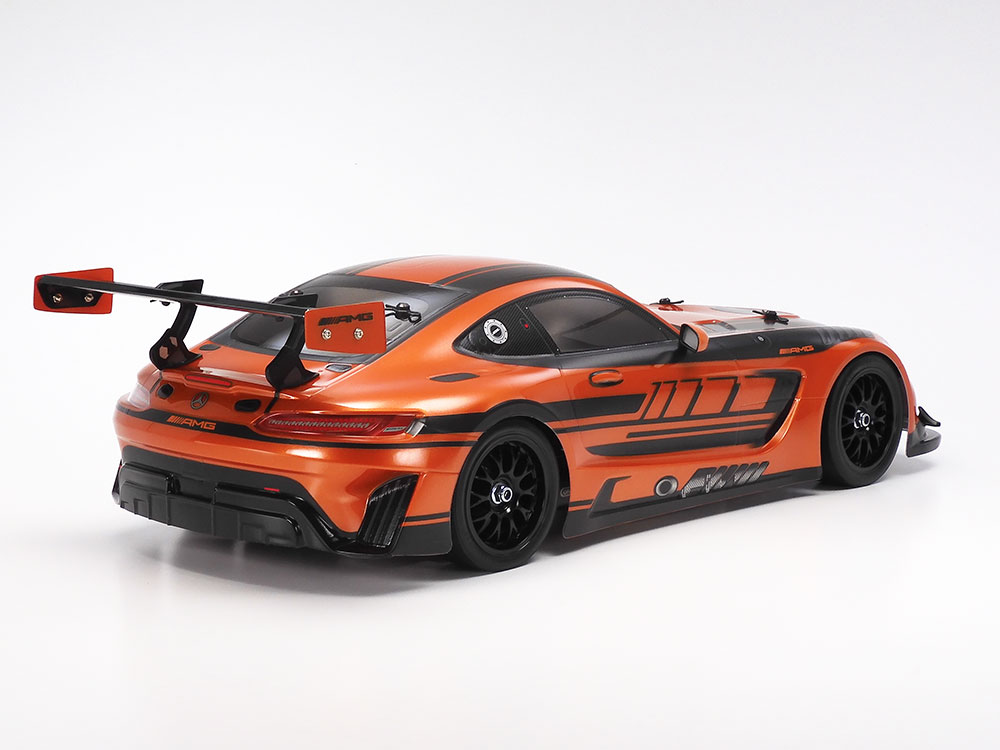

  • The long-nose short deck polycarbonate body looks great from the back, too!

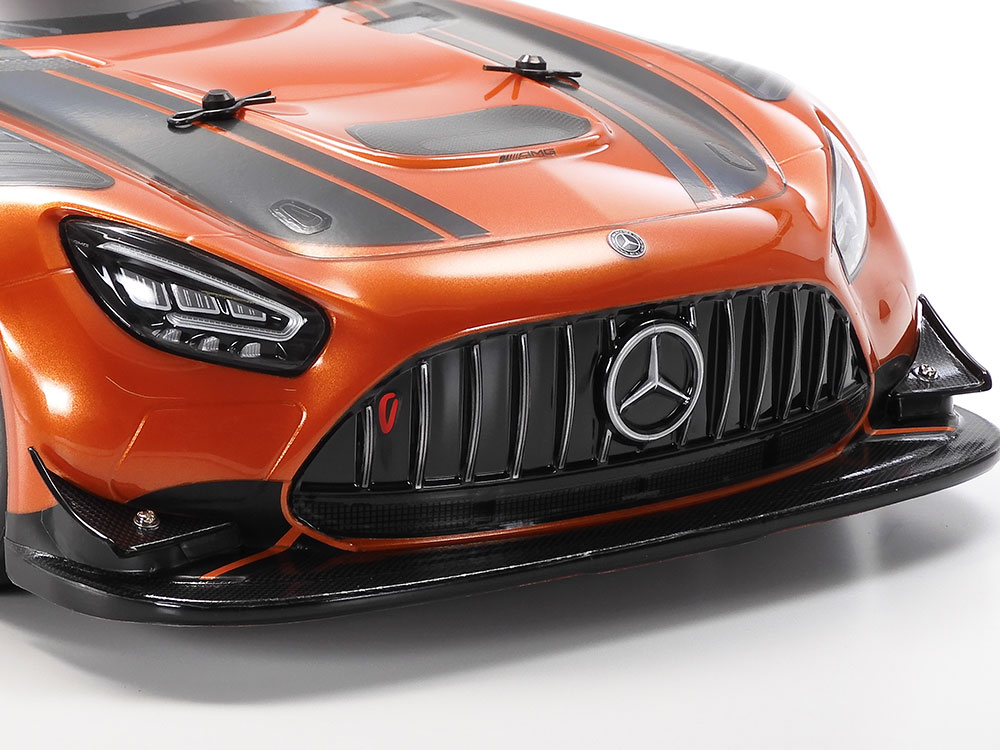

  • Stickers are used to recreate the three-pointed star and grille details. Headlight cases are separate parts.

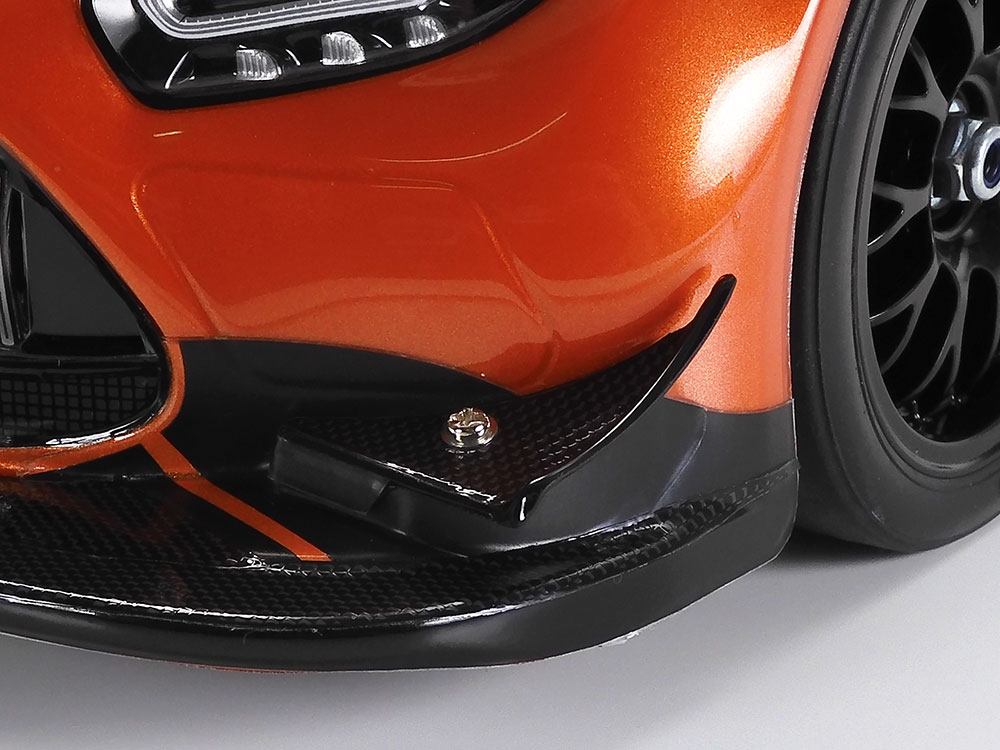

  • Polycarbonate canards are affixed with screws and double-sided tape.

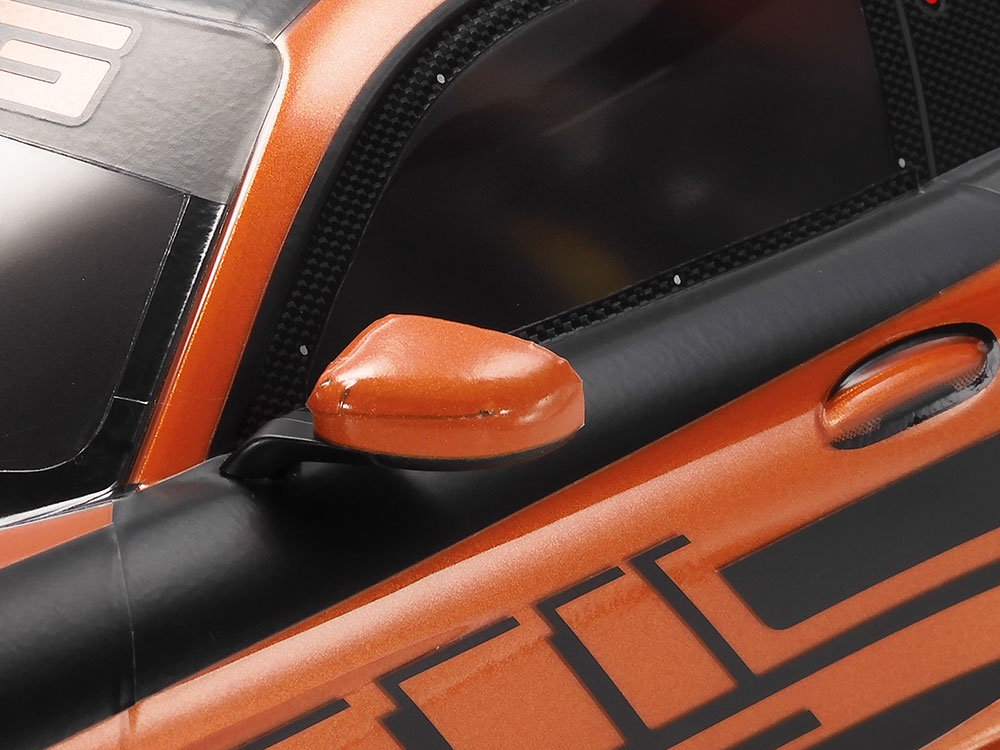

  • Side mirror surfaces are polycarbonate, with a sticker to create the reflective finish.
  • Taillights also have separately molded light cases, which are decorated with stickers.

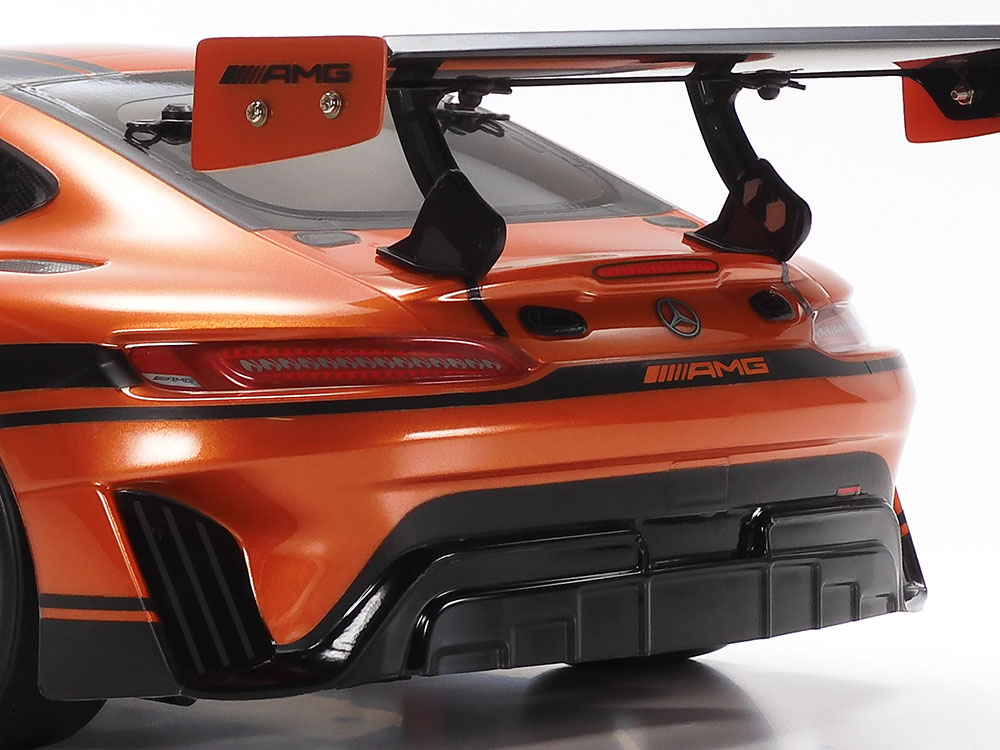

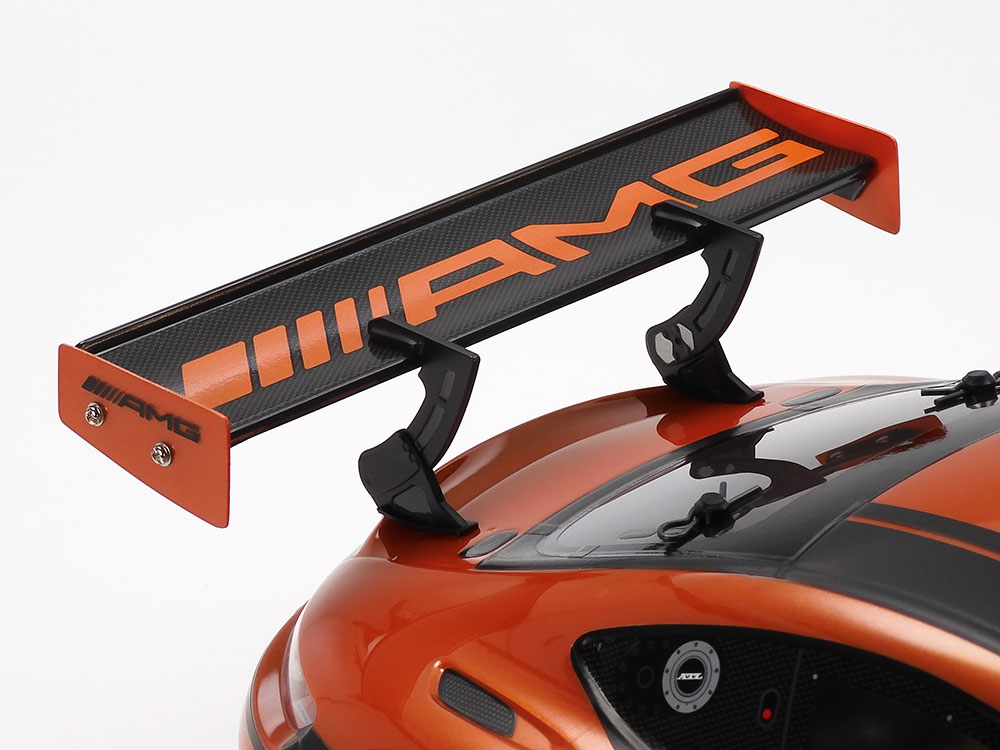

  • The rear wing is durable polycarbonate, with injection molded stays.
  • A comprehensive set of stickers recreates many details including black livery graphics.

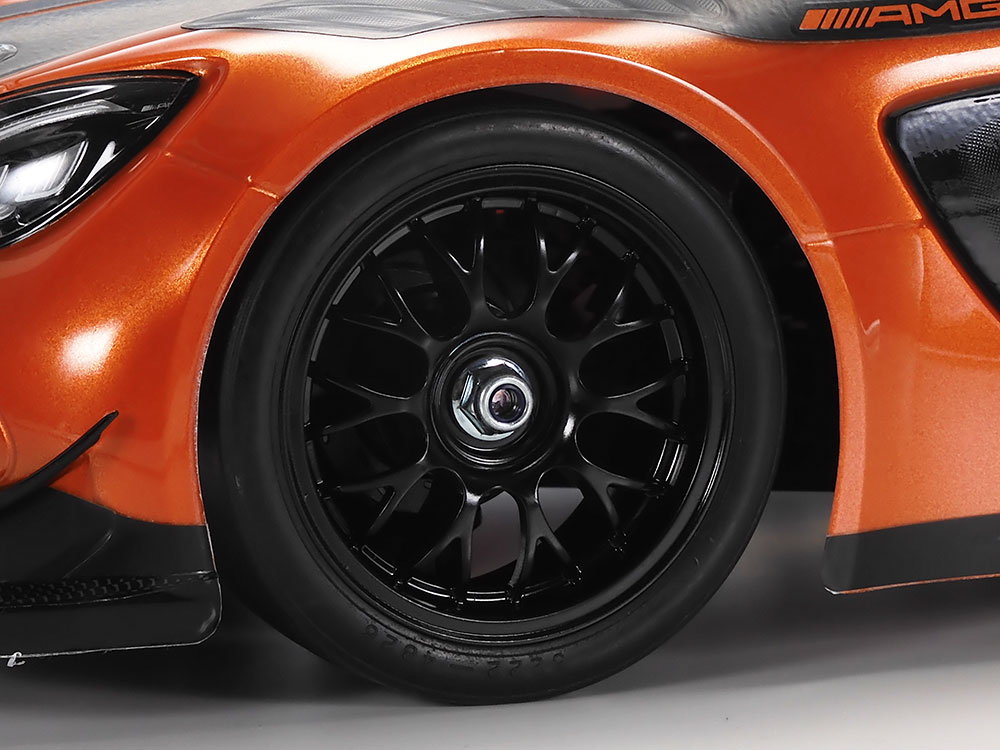

  • Black wheels are paired with racing slick tires.
  • Resin ball links in the steering linkage joints make for smooth, comfortable motion.
  • Wheel hubs are shaped to look like brake discs.

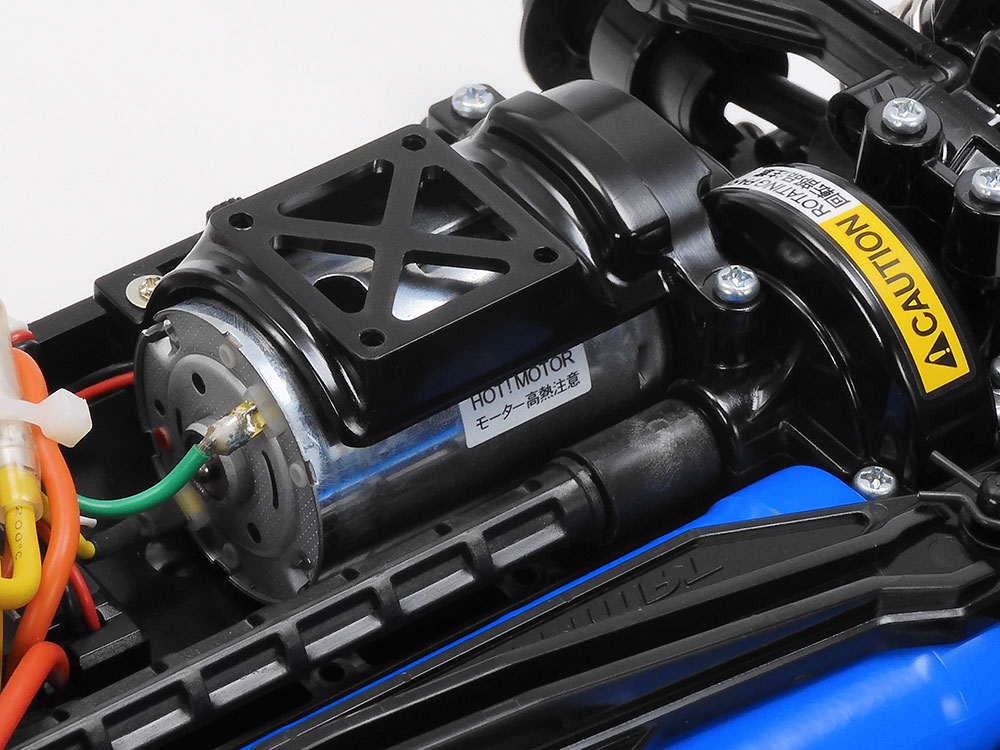

  • Motor cover includes removable cooling duct (not attached in this image).

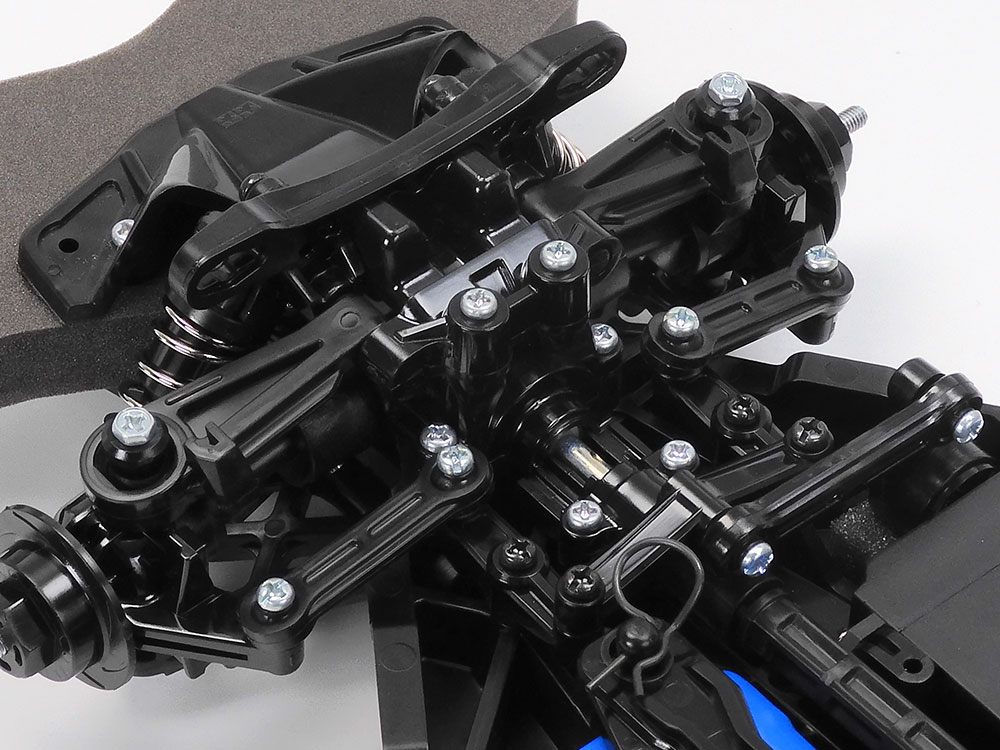

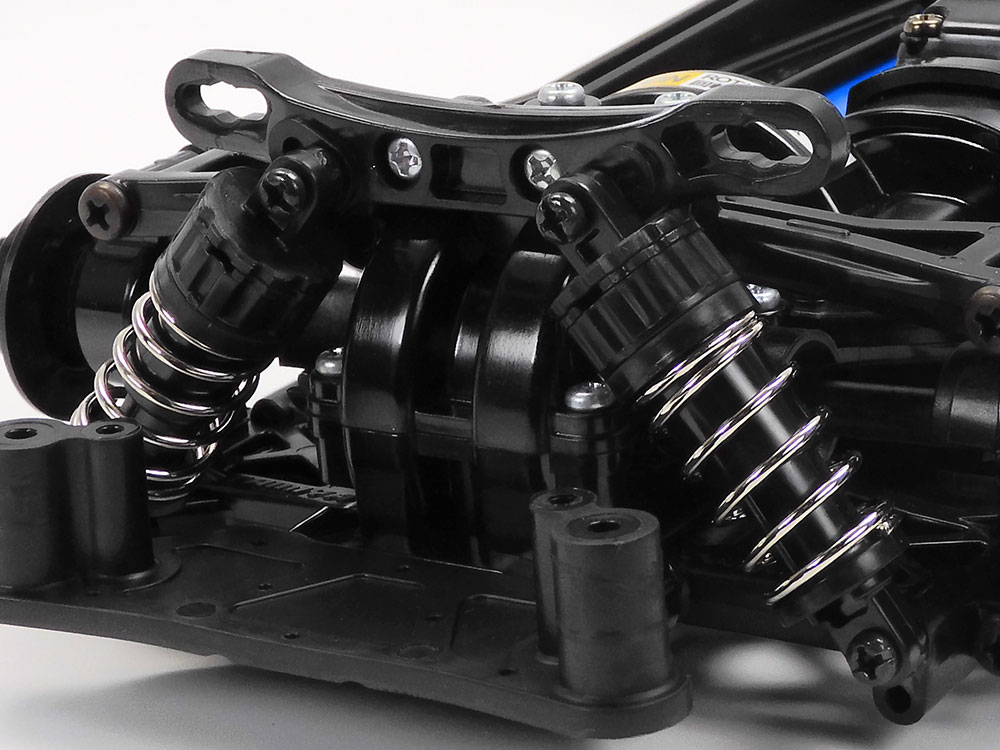

  • This image gives a closer look at the rear double-wishbone suspension with friction dampers.

Information is current as of November 5, 2025. Specifications are subject to change without notice.
