1/10 SCALE R/C 4WD HIGH PERFORMANCE OFF ROAD RACER DB01SR CHASSIS KIT

Length: 395 mm. Image shows painted and assembled kit.

*Compatible with square-shaped battery packs. Motor is sold separately.

This chassis kit creates a 2 belt-driven 4WD buggy with identical belts and option parts for great off-road race performance. A slipper clutch provides stable drive and the gear differentials feature steel bevel gears which need less maintenance and are compatible with high-power motors. The kit features front and rear universal shafts for efficient drive and reinforced drive belts. Front and rear hex hubs allow a wide choice of wheels and tires, and square-shaped battery packs can be installed.

Featured Components

●Lower deck compatible with square-shaped battery packs ●Front/rear gear differential units with steel bevel gears ●Front/rear assembly universal shafts ●Front/rear aluminum hex hubs ●Front/rear dish wheels ●TRF201 rear wing set ●Reinforced drive belts ●Dual block tires K

Specifications

●Length: 357mm (no body) ●Width: 251mm ●Wheelbase: 280mm ●Glass fiber-reinforced nylon chassis ●2 belt-driven 4WD ●Front/rear oil-filled gear differentials ●CVA oil dampers ●Gear ratio = 11:1 with kit 17T pinion (11.69:1 to 8.13:1 with other pinions) ●Requires Type 540 motor (sold separately) ●Contact your local Tamiya Agent regarding the ESC.

Separately Required Items

●Brushless motor ●2-channel R/C System with ESC ●R6/AA/UM3 batteries for transmitter ●Battery pack and charger

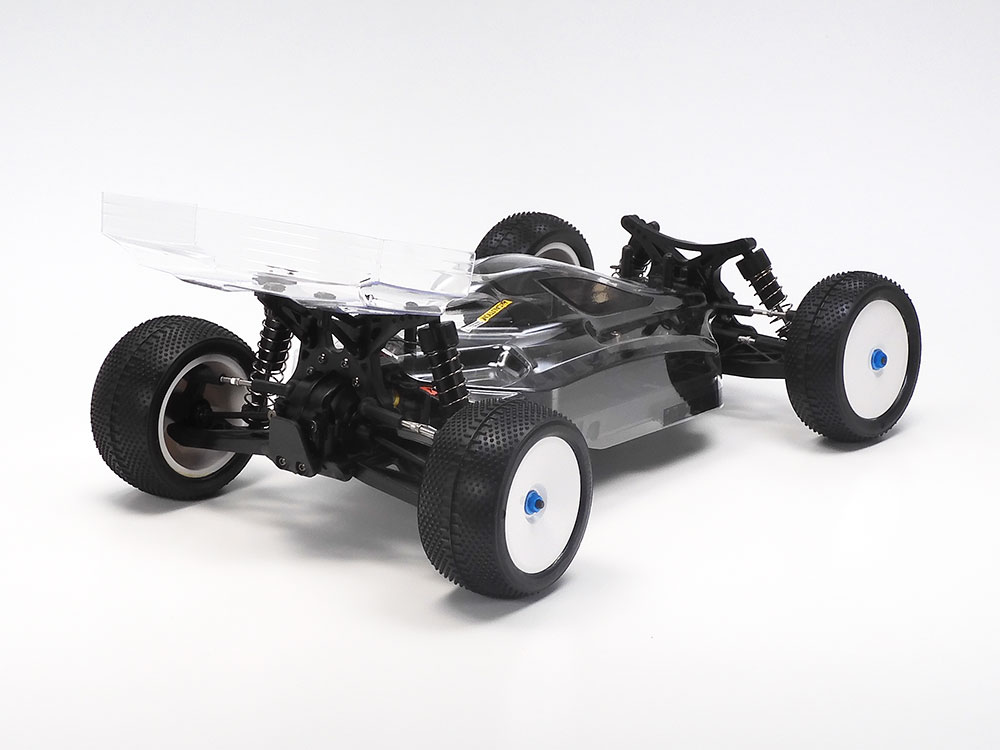

The kit comes with a polycarbonate body previously seen in the Baldre model.
A close-up on the 3-piece steering linkage with turnbuckle rods, and ball bearings for smooth motion.

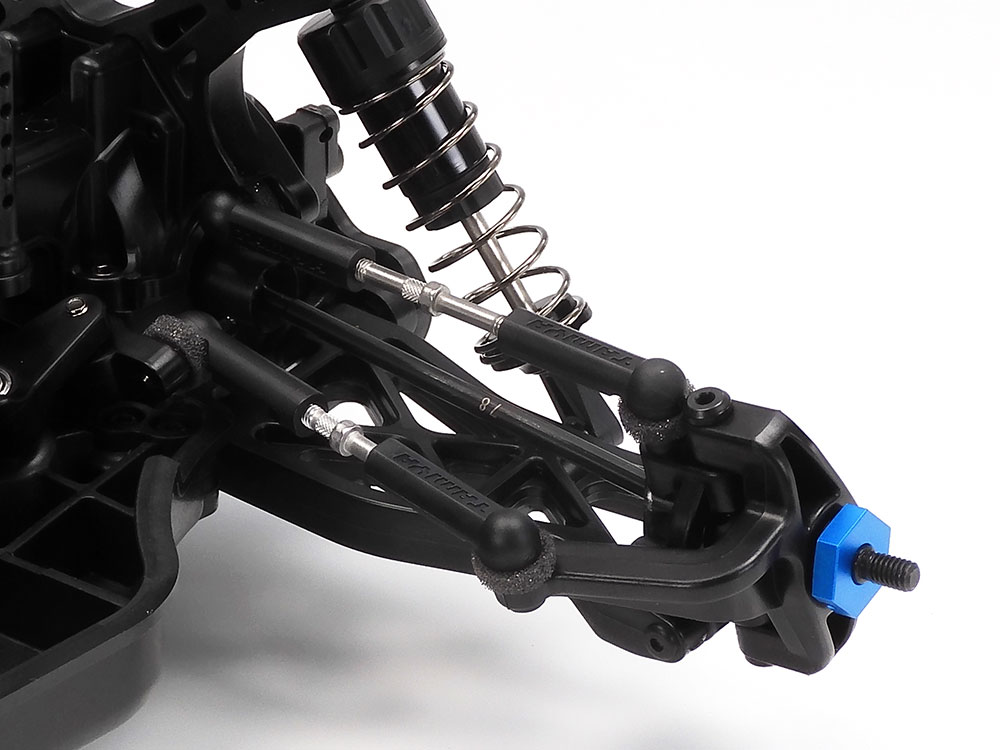

The double wishbone front suspension uses turnbuckle upper arms. Universal drive shafts are highly efficient.

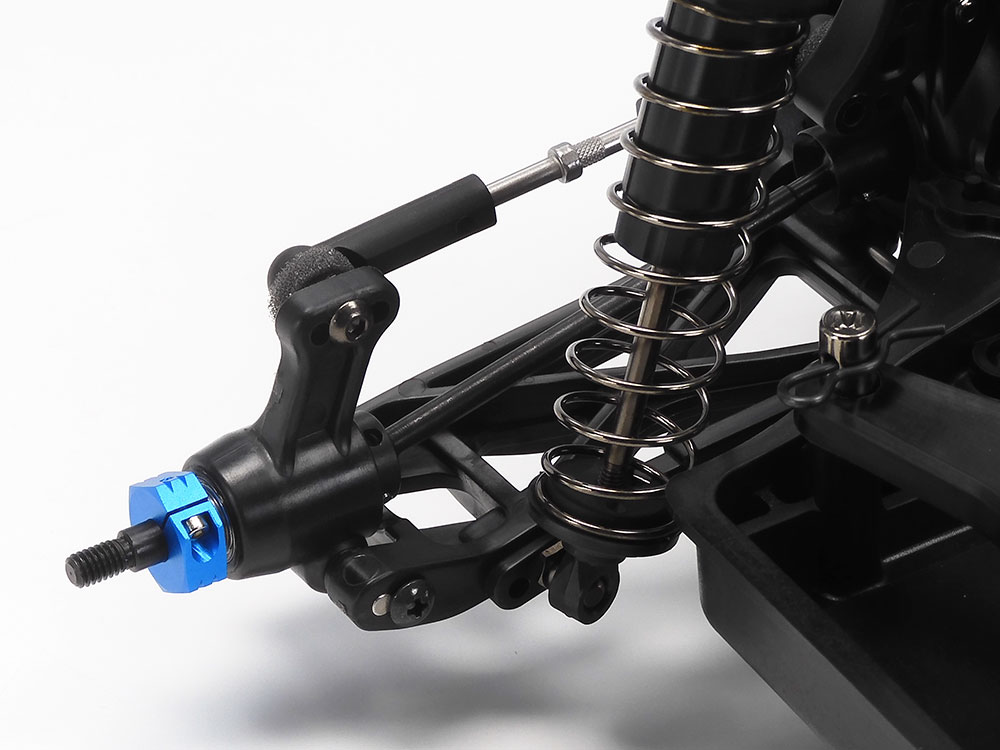

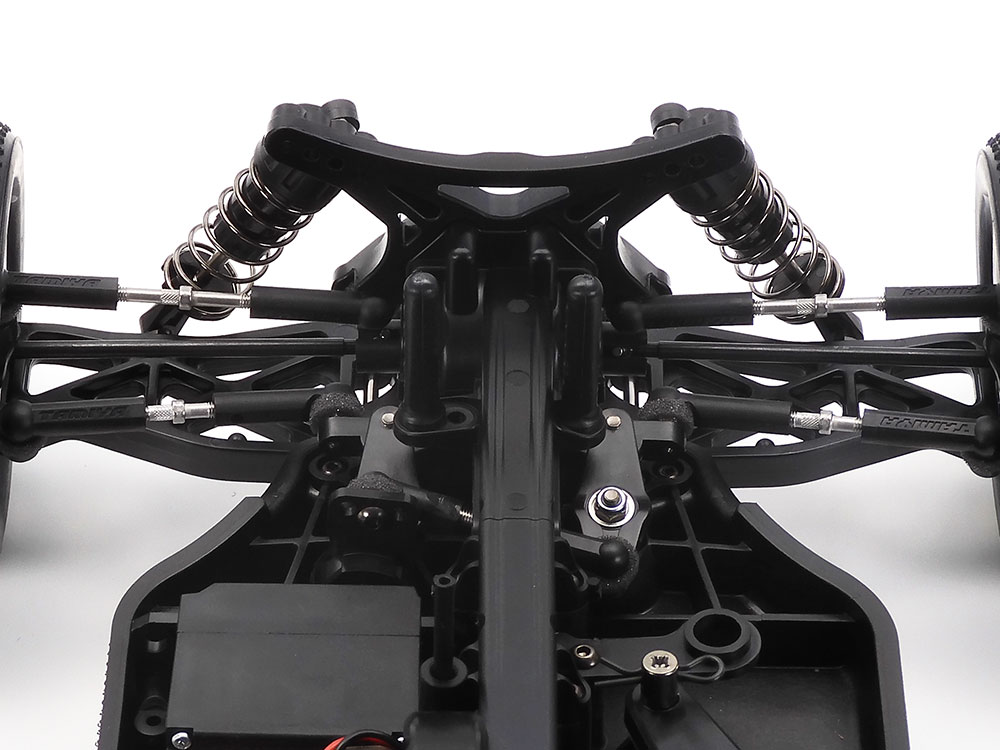

Fine tune your suspension by using a choice of 4 upper and 3 lower positions for the CVA short dampers.

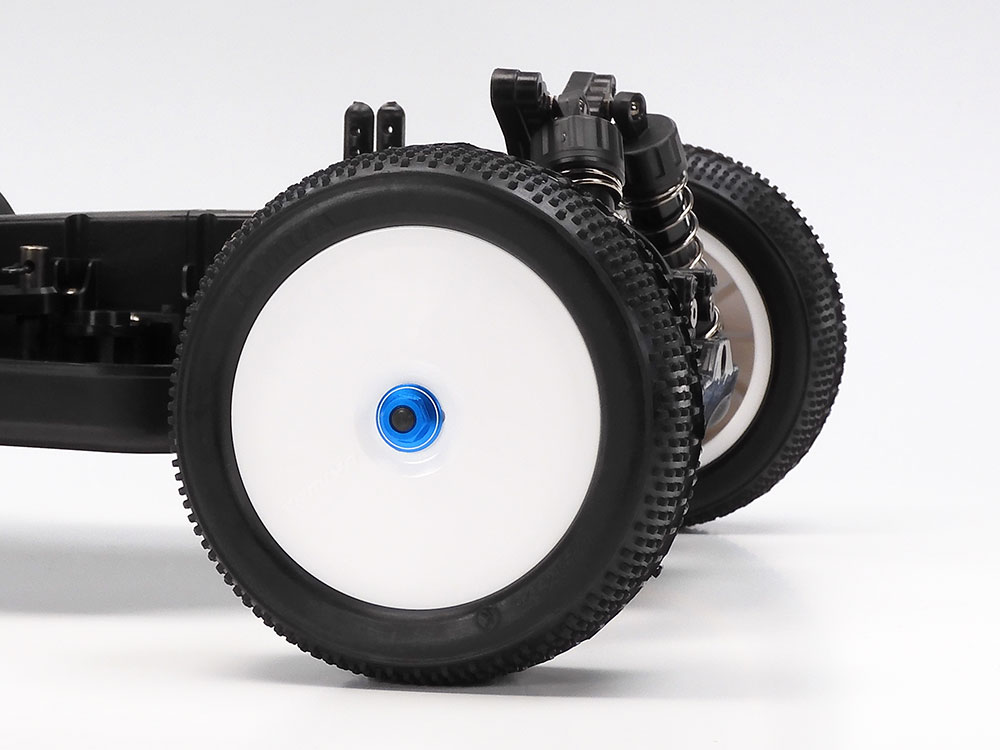

Flat dish wheels pick up less mud and dirt, and are paired with dual block K tires for great off-road grip.

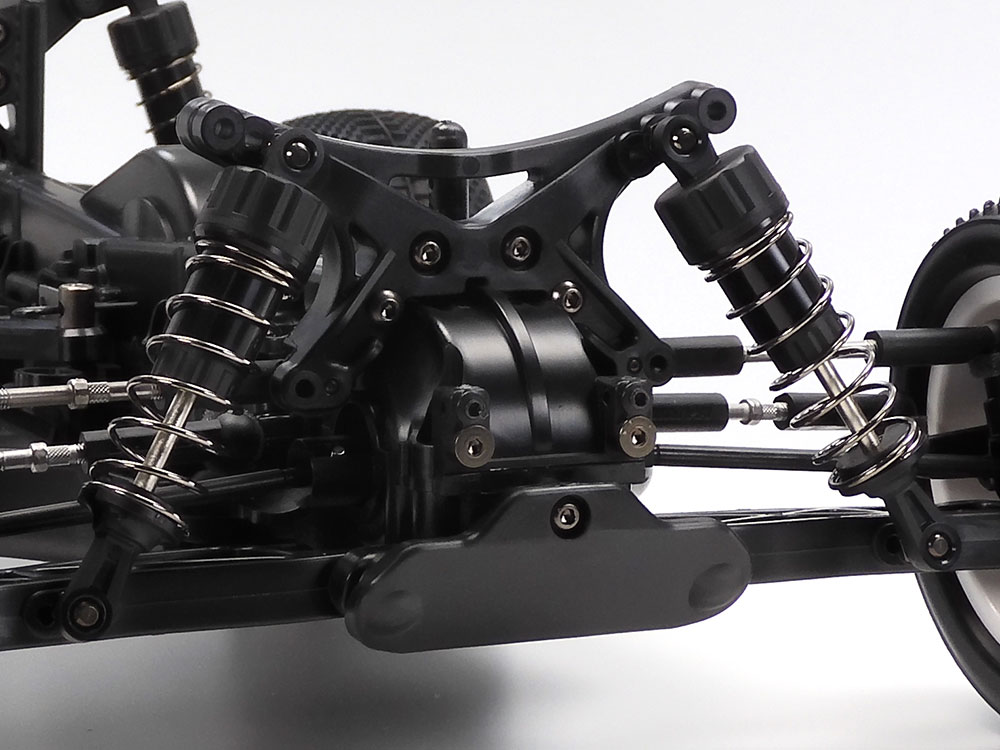

The rear suspension has wide-span “H” arms and upper “I” arms. Choose from 4 upper and 3 lower damper attachment points.

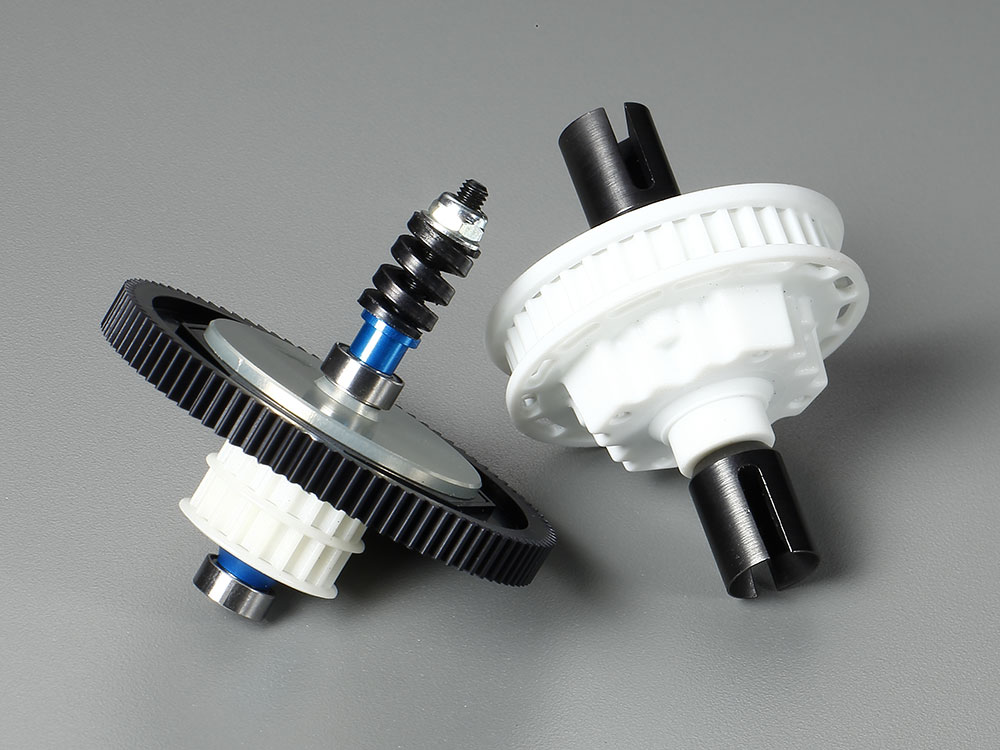

The DB01 SR has oil-filled gear differentials front and rear, joined by a central slipper clutch.

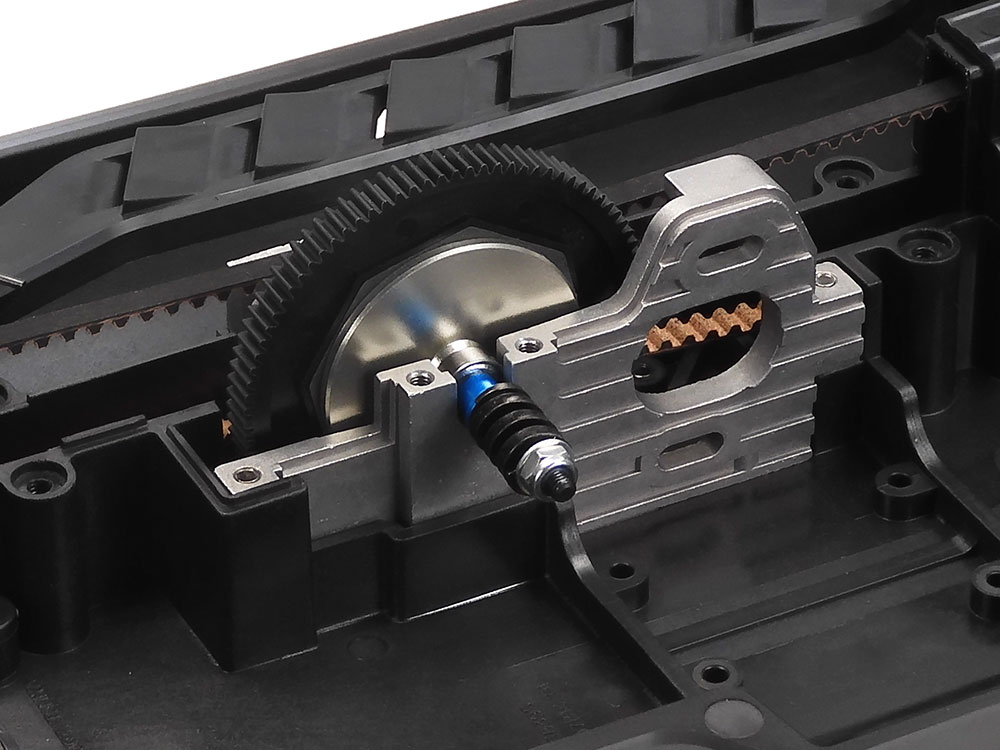

The aluminum motor mount has a heat sink design, and belts are reinforced.

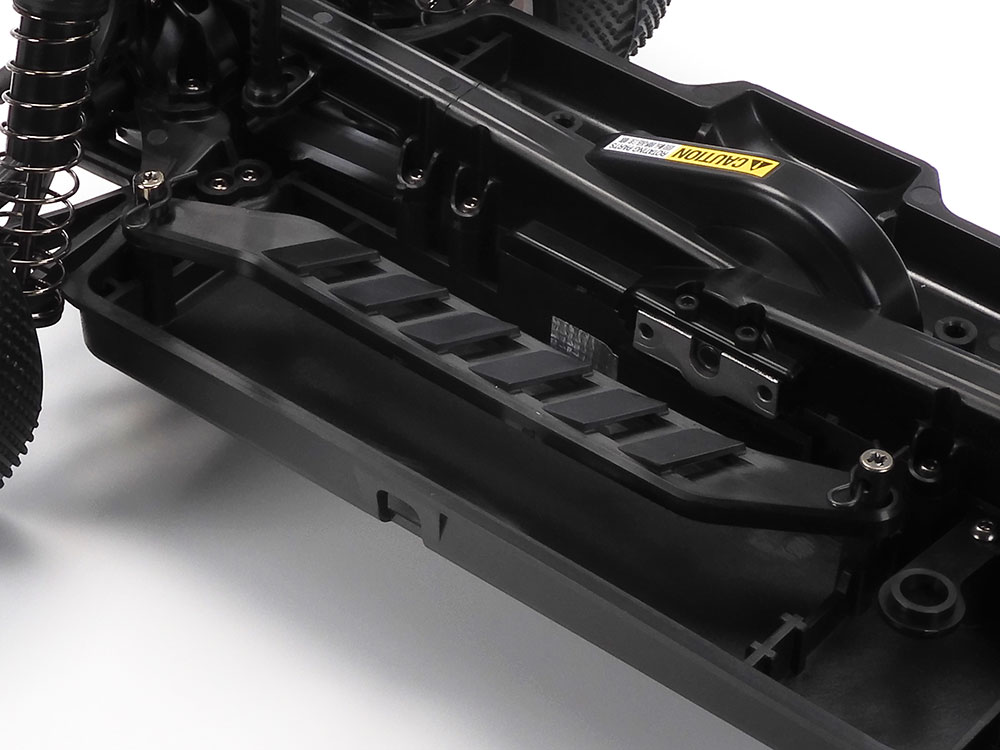

The glass fiber-reinforced nylon plastic frame is compatible with square-shaped battery packs.
One of two wing angles can be used. Switch between them by changing the wing mount direction.

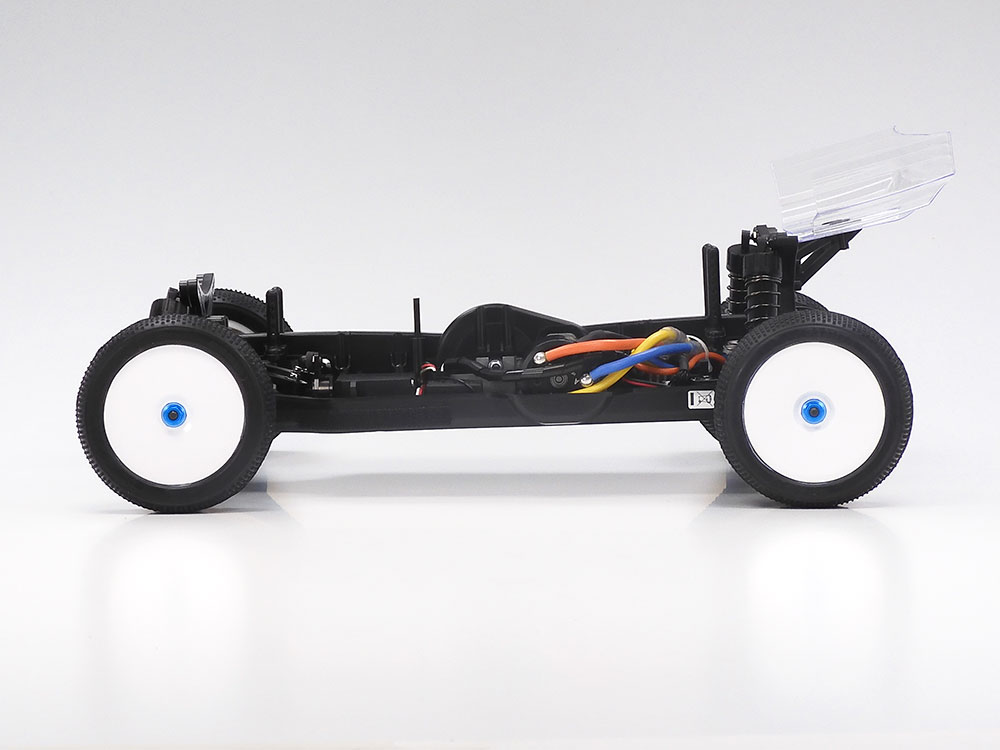

Viewed from the side you can see the ample ground clearance despite the DB01 SR’s low center of gravity.
