Item No:70203
Educational Construction Series (Units) No.203
LOW-CURRENT MOTOR GEARBOX (3-SPEED)
![](<img src="//d7z22c0gz59ng.cloudfront.net/japan_contents/img/usr/item/7/70203/70203_1.jpg" />
)
Image shows illustration.
Highly-Efficient Gearbox

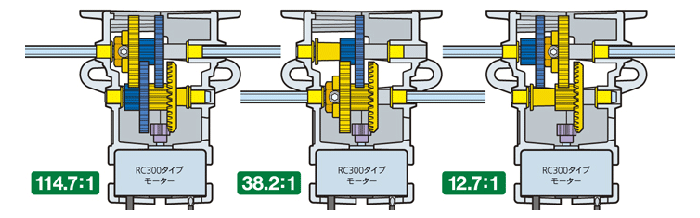

This gearbox features a highly efficient motor which can be powered by either 1.5-3.0V alkaline batteries or solar panels (0.5V, 1.5V). Compact gearbox is made from transparent ABS plastic. High-efficiency means a long running time, and three different gear ratios enable a wide range of applications. Gearbox attachment holes feature 35mm distance to allow compatibility with separately available universal plate products. The set also includes a 3mm hex drive shaft and crank plates which can be used as wheels.
This gearbox features a highly efficient motor which can be powered by either 1.5-3.0V alkaline batteries or solar panels (0.5V, 1.5V). Compact gearbox is made from transparent ABS plastic. High-efficiency means a long running time, and three different gear ratios enable a wide range of applications. Gearbox attachment holes feature 35mm distance to allow compatibility with separately available universal plate products. The set also includes a 3mm hex drive shaft and crank plates which can be used as wheels.
